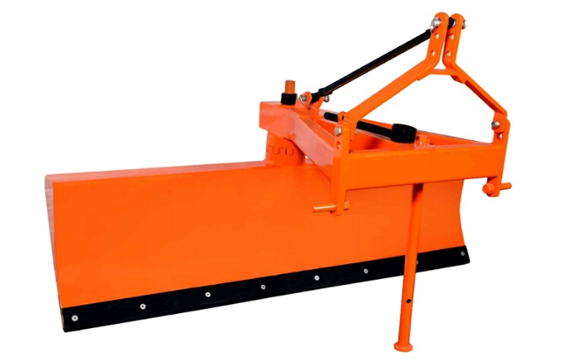

TERRACER LEVELERS

FEATURES

• Robust Frame
• Reversible Cutting Blade
• Soil-retaining wings
• Heavy Duty Lift

BENEFITS



It is basic and tough implement which is mounted directly to the tractor. Its purpose is to excavate the top layer of the soil and spread it evenly on the ground. It can also be used for filling & clearing the farmlands. A leveled field ensures that the water spreads evenly throughout it, which reduces the cost of irrigation. As the water reaches the crops adequately, it increases the productivity of the land, making it an ideal implement for every farmer.


Specification



DESCRIPTION
MEHR-1
MEHR-2
MEHR-3
FRAME
Draw Bar Monuting with the help of MS Flat section 75x20 mm, 520 mm long.
SIDE SUPPORT
Crescent Shape, MS Flat, Max width 100 mm, Min width 35 mm.
THICKNESS OF PLATE (in mm)
10
THICKNESS OF BLADE (in mm)
10
THREE POINT LINKAGE
CAT-I/II (Optional)
CENTRE SUPPORT
MS Angle 40x5 mm
LINKAGE PIN
28 mm
WORKING WIDTH (in mm)
1850
2150
2460
WEIGHT (in Kgs. Approx.)
175
185
200
POWER REQUIRED (in HP)
30-35
40-45
55-60
