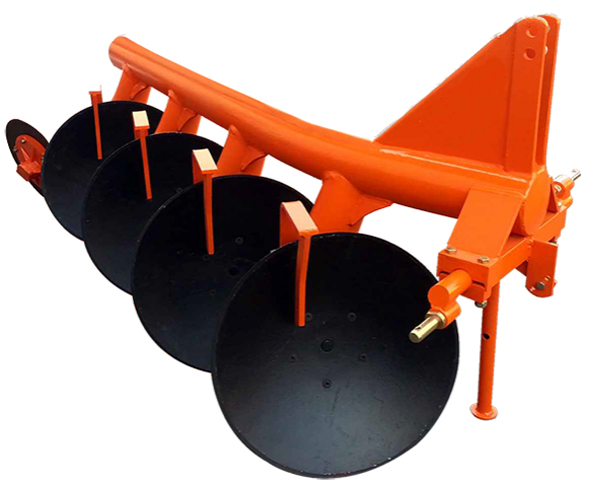

DISC PLOUGH
FEATURES
• Heavy duty reinforced pipe Frame
• Boron Steel Discs
• CNC Machined Spindles & Hubs
• Scrapers (Sheet / MS Flat Optional )
• Robust Coulter Assembly
BENEFITS
It performs all basic functions like breaking, raising, turning & mixing the soil. It is especially useful in hard and dry trashy land conditions where scouring is a major problem. It opens up the land, after which harrows & tillers can be used easily. It can also be used in rocky & rooted areas.
Specification
DESCRIPTION |
MEHR-DP-01 |
MEHR-DP-02 |
MEHR-DP-03 |
MEHR-DP-03 |
FRAME (in mm) |
Seamless Tubular Frame ( OD 168 mm, ID 148 mm) |
|||
AXLE TYPE |
Spindle |
|||
NO. OF DISC |
2 |
3 |
4 |
5 |
MOUNTED CATEGORY |
CAT-I/II (Optional) |
|||
DISC DIAMETER ( in mm) |
660 x 6 mm (Plain/Notched) Boron Steel |
|||
DISC SPACING ( in mm) |
560 |
|||
WIDTH OF CUT ( in mm approx.) |
500-500 |
875-925 |
1150-1200 |
1575-1625 |
BEARING HUBS |
2 |
3 |
4 |
5 |
WEIGHT (in Kgs. approx.) |
290 |
390 |
490 |
590 |
TRACTOR POWER (in HP) |
45-60 |
60-75 |
75-90 |
90 & above. |
