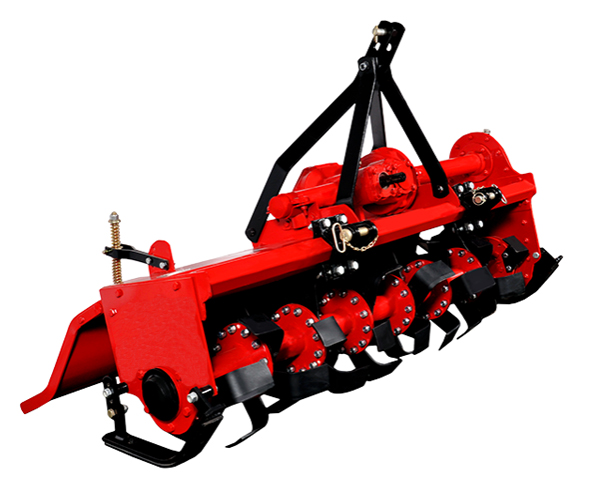

ROTAVATOR
FEATURES
• Heavy Duty Gearbox
• Robust Side Gears
• Boron Steel Blades
• CNC Machines Hubs & Axles
• Heavy Duty PTO Shaft (with Shear Bolt)
BENEFITS
It is used for cutting, chopping & mixing the crop residue into the soil. It pulverises the soil making it easy for the farmer to use harrow & tiller afterwards. It uses the tractor power via PTO Shaft for its working. It can loosen and aerate the land upto a depth of 8 inches. Side-skids have been provided for easy depth-control.
Specification
DESCRIPTION |
MEHR-ROTA-01 |
MEHR-ROTA-02 |
MEHR-ROTA-03 |
MEHRROTA-04 |
MEHR-ROTA-05 |
MEHR-ROTA-06 |
TILLAGE WIDTH ( in mm) |
1500 |
1750 |
2000 |
2250 |
2500 |
2750 |
GEAR BOX |
Multi Speed |
|||||
SIDE TRANSMISSION |
Gear Drive |
|||||
TYPE OF BLADE |
L Type |
|||||
NO. OF FLANGES |
7 |
8 |
9 |
10 |
11 |
12 |
NO. OF BLADES |
36 |
42 |
48 |
54 |
60 |
66 |
GEAR BOX OVERLOAD PROTECTION |
Shear Bolt
|
|||||
WEIGHT ( in Kgs. approx.) |
370 |
410 |
450 |
490 |
530 |
570 |
TRACTOR POWER ( in HP) |
40-45 |
45-55 |
55-65 |
65-75 |
75-90 |
90 & above |
