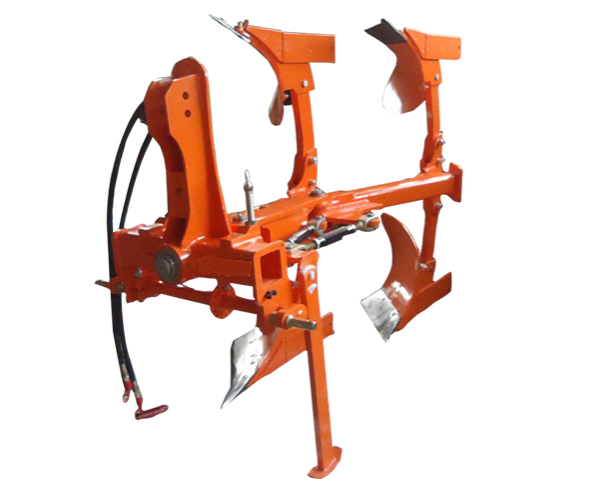

HYDRAULIC REVERSIBLE MB PLOUGH

FEATURES

• Profile-Cut Tynes
• Robust Pipe Frame
• Unique Rotating Mechanism
• Premium Quality Bar Points
• Adjustable Drawbar


BENEFITS



It is designed for breaking, raising, turning & mixing the soil. It is especially useful in hard and dry trashy land conditions where scouring is a major problem. It opens up the land, after which harrows & tillers can be used easily. It can also be used in rocky & rooted areas. Its reversible action makes the ploughing operation faster & more economical.


Specification



DESCRIPTION
MEHR-DP-01
MEHR-DP-02
MEHR-DP-03
MEHR-DP-03
FRAME (in mm)
Seamless Tubular Frame ( OD 168 mm, ID 148 mm)
AXLE TYPE
Spindle
NO. OF DISC
2
3
4
5
MOUNTED CATEGORY
CAT-I/II (Optional)
DISC DIAMETER ( in mm)
660 x 6 mm (Plain/Notched) Boron Steel
DISC SPACING ( in mm)
560
WIDTH OF CUT ( in mm approx.)
500-500
875-925
1150-1200
1575-1625
BEARING HUBS
2
3
4
5
WEIGHT (in Kgs. approx.)
290
390
490
590
TRACTOR POWER (in HP)
45-60
60-75
75-90
90 & above.
