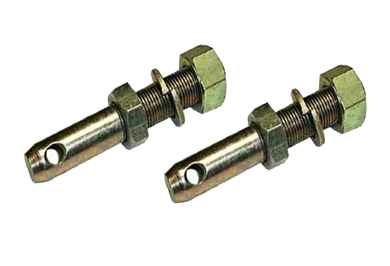

ADJUSTABLE LOWER LINK PINS
Specification
| Adjustable Lower Link Pins | |||||||
CODE |
Cat |
A |
B |
C |
D |
E |
F |
MEHR - 0001 |
0 |
16 |
102 |
89 |
56 |
5/3'UNF |
7 |
MEHR - 0002 |
0 & 1 |
22.2 |
114 |
102 |
51 |
5/8"UNF |
12 |
MEHR - 0003 |
1 |
22.2 |
83 |
72 |
51 |
7/8"UNF |
12 |
MEHR - 0004 |
1 |
22.2 |
108 |
69 |
43 |
7/8"UNF |
12 |
MEHR - 0005 |
1 |
22.2 |
135 |
116 |
70 |
7/8"UNF |
12 |
MEHR - 0006 |
1 |
22.2 |
160 |
143 |
86 |
7/8"UNF |
12 |
MEHR - 0007 |
1 |
22.2 |
190 |
178 |
124 |
7/8"UNF |
12 |
MEHR - 0008 |
1 & 2 |
28.6 |
133 |
116 |
65 |
7/8"UNF |
12 |
MEHR - 0009 |
2 |
28.6 |
152 |
79 |
73 |
1'UNC |
12 |
MEHR - 0010 |
2 |
28.6 |
152 |
136 |
76 |
1-1/8"UNC |
12 |
MEHR - 0011 |
2 |
28.6 |
152 |
136 |
86 |
1-1/8"UNC |
12 |
MEHR - 0012 |
2 |
28.6 |
190 |
171 |
114 |
1-1/8"UNC |
12 |
MEHR - 0013 |
2 & 3 |
36.5 |
165 |
146 |
89 |
1-1/8"UNC |
12 |
