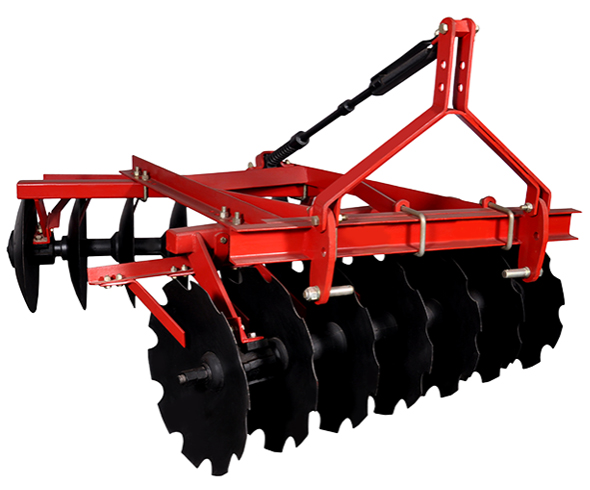

DISC HARROW SUPREME MODEL
FEATURES
• Robust Channel & Angle Frame
• Single / Split Gang Arrangement (according to size)
• Notched Discs in Front Gang & Plain Discs in Rear (Optional)
• Robust Bearing Hub Mechanism
BENEFITS
It is ideal for breaking clods in the soil, loosening & preparing it for tillage. It allows the farmer to chop & bury the remainsof the crop into the land. It has been designed for working in medium & light soil conditions. It can be used in both sticky aswell as non-sticky soils.
Specification
DESCRIPTION |
MEHR-DHSM-01 |
MEHR-DHSM-02 |
MEHR-DHSM-03 |
MEHR-DHSM-03 |
MEHR-DHSM-04 |
MEHR-DHSM-05 |
MEHR-DHSM-06 |
FRAME (in mm) |
75x10 mm Angle with 100x50 mm Channel |
||||||
GAND BOLT/AXLE |
Centre Square Solid Bar (31mm) |
||||||
NO. OF DISC |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
DISC DIAMETER (in mm) |
Single Gang |
Split Gang |
|||||
WIDTH OF CUT (in mm approx.) |
Notched Disc in Front & Plain Disc in Rear |
||||||
DISTANCE BETWEEN DISCS |
560 mm x 4 mm / 610 mm x 5mm (Boron Steel) |
||||||
1420 |
1635 |
1852 |
2068 |
2285 |
2502 |
2718 |
|
228 mm (9 inch.) |
|||||||
BEARING HUBS |
4 |
6 |
8 |
||||
WEIGHT (Kg) in 560 mm Disc (Approx) |
395 |
425 |
500 |
570 |
610 |
670 |
725 |
WEIGHT (Kg) in610 mm Disc (Approx) |
445 |
485 |
570 |
640 |
685 |
755 |
815 |
POWER REQUIRED (in HP) |
30-40 |
40-50 |
50-60 |
60-70 |
70-80 |
80-90 |
90-100 |
