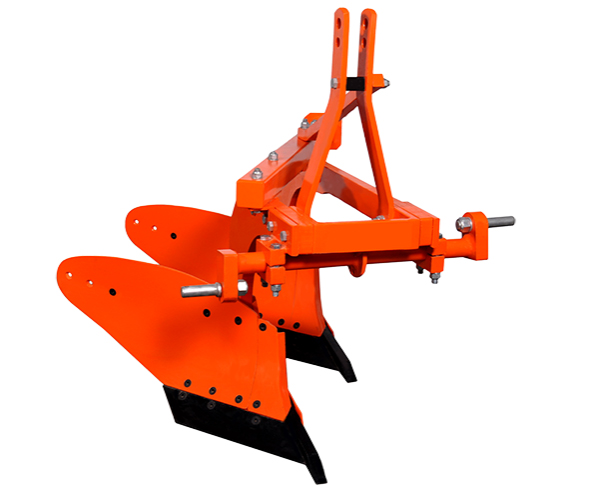

MB PLOUGH
FEATURES
• Profile-Cut Tynes
• Robust Pipe Frame
• Premium Quality Bar Points
• Adjustable Drawbar
BENEFITS
It is designed for breaking, raising, turning & mixing the soil. It is especially useful in hard and dry trashy land conditions where scouring is a major problem. It opens up the land, after which harrows & tillers can be used easily. It can also be used in rocky & rooted areas.
Specification
DESCRIPTION |
MEHR-MBP-01 |
MEHR-MBP-02 |
MEHR-MBP-03 |
FRAME |
M.S. Square Pipe |
||
DRAWBAR Sq. |
50 mm Solid Shaft |
||
FURROW |
2 |
3 |
4 |
TYNE |
36 mm Profile Cut Single Piece |
||
LENGTH (in mm) |
1300 |
1880 |
2460 |
HEIGHT (in mm) |
1066 |
||
BLADE |
8 mm |
||
MOULD BOARD |
8 mm |
||
BAR POINT |
31 mm ( High Carbon) |
||
3 POINT LINKAGE LEVER |
M.S. Flat 65x16 mm Flat |
||
CONNECTING ROD |
31 mm Solid Square |
||
WIDTH OF CUT ( in mm) |
610 |
910 |
1210 |
DEPTH OF CUT ( in mm) |
350 |
||
WEIGHT ( in Kgs. approx.) |
215 |
320 |
430 |
POWER REQUIRED ( in HP) |
45-60 |
60-75 |
75 &above |
