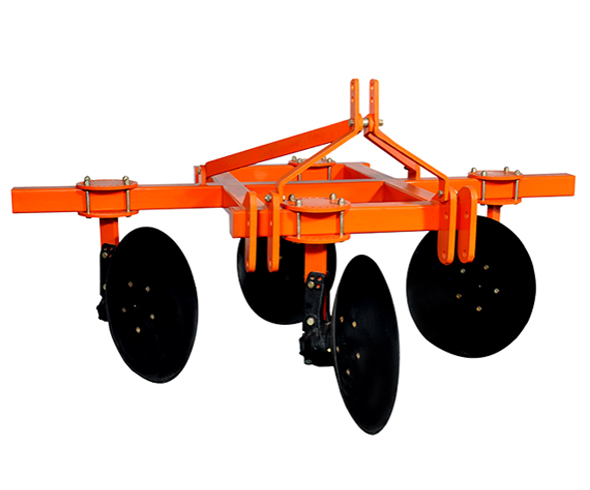

DISC RIDGER

FEATURES

• Heavy duty reinforced pipe Frame
• Boron Steel Discs
• CNC Machined Spindles & Hubs


BENEFITS



Its discs work in pair, wherein they rotate in opposite directions, thereby cutting up the land and forming ridges / bunds. The discs allow the Ridger to penetrate even in toughest land conditions. These discs / bunds are used for sowing of crops, water management while also acting as walking paths and even boundaries in the field.


Specification



DESCRIPTION
MEHR-DR-01
MEHR-DR-02
MEHR-DR-03
FRAME (in mm)
M.S. Square Tubular Pipe
AXLE TYPE
Spindle
NO. OF DISC
2
4
6
TYPE OF DISC
Plain Notched (Optional)
DISC DIAMETER ( in mm)
660 x 6 mm (Boron Steel)
MAX WIDTH BETWEEN RIDGES ( in mm)
100 mm
WORKING DEPTH ( Max in mm)
330 (Depends upon the soil conditions)
BEARING HUBS
2
4
6
WEIGHT (IN Kgs. approx)
195
425
650
TRACTOR POWER (in HP)
50-65
65-90
90 & above
